Monday 14 September 2015

Classic baritone John Virgo signature

This beauty is for John Virgo, guitarist of the metal outfit ChuggaBoom. The spec is as follows:
Neck: 9 splices wenge, maple, bubinga, ebony neck through construction
Body: quilted mahogany with English maple centre slice and buck eye burl maple top
Two ways truss rod with two 6mm titanium reinforcement bars
Fret board: Zebrano
Frets: 22 medium Jumbo stainless steel
Scale length: 26.5"
Bridge: Hipshot hard tail with strings through body
Nut: steel 42.3mm
Tuners: planet waves locking & self trimming
Pick ups: Bare Knuckles Aftermath with aged nickel covers
Controls: 1 volume 1 tone 5 ways blade switch
Wiring: position 1 bridge humbaker
Position 2 inside coils of both pick ups
Position 3 both humbakers
Position 4 outside coils of both pick ups
Position 5 neck humbaker
Push pull pots will provide series/parallel
Options
Head stock veneer: buck eye burl maple
Head stock back veneer: ebony
Finish: tru oil

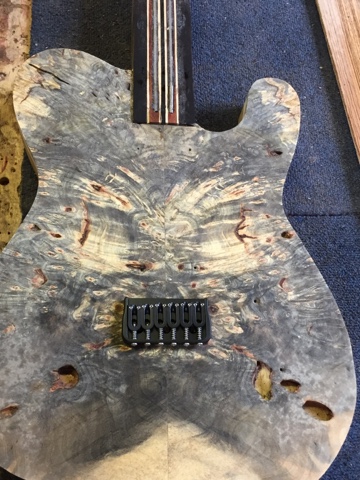

I'm filling the holes in the buck eye burl top with molten solder and file it back flat. I will polish it up before applying the finish to seale it in















Monday 3 August 2015

Classic, final shape

This is the final shape of the Classic model, an updated tele in short. The main characteristics I'd say are the volume, tone and switch differently placed from the standard design, 25" scale length, 16" radius, 22 frets, body comfort cuts, plait less heel cut for high access to the high frets. This particular one spots a two pieces ash body, maple neck with snakewood fretboard, brass frets, brass nut, will have a brass bridge, gold locking tuners, Seymour Duncan Custom Shop pick ups Little '59 mini humbaker on the bridge position and Hot on the neck position, gold Schaller strap locks. The finish is very thin nitrocellulose Antique Burst with open pores. You can not only see the deep pores veins tipicle of the Ashbut you can feel it too

Saturday 17 January 2015

Basses

I've started works on 3 basss, the design is based on the Jazz Bass but with little differences, one has a mahogany body, a 5 splices maple/ mahogany neck and ebony fret board. The second a ash body with a one piece walnut neck and the third a 3 layers body with figured Sapele top and back and English pine core, this will be a hollow body with an F hole. The neck will be 5 splices mahogany/ maple.
This is the mahogany body
This is the ash body
And this is the Sapele & Pine thineline body
First one almost done, the other two not so far behind. On the first I will spray the body and neck this week and wind a middle pick up. I'll use the Seymour Duncan Hot in the picture for the Ash body one.

The first bass being test driven by my friend Mark Johnson of Johnner's amplification who I make beautiful amps with. A stunning instrument! More pics will follow
